FSSP Systems
WEI is the OEM Manufacture of TACOM’S Family of Fuel System Systems Points. The FSSP is a specially assembled group of components designed to be used by forward area personnel to receive, dispense and store multiple types of fuels. The FSSP is capable of receiving fuel from tank trucks, by rail, by pipeline or hoseline. Fuel is dispensed by pumping the fuel from the storage tanks to the nozzles at the dispensing points. Fuel can also be dispensed by bypassing the storage tanks and pumping the fuel directly from the receiving points to the distribution points.

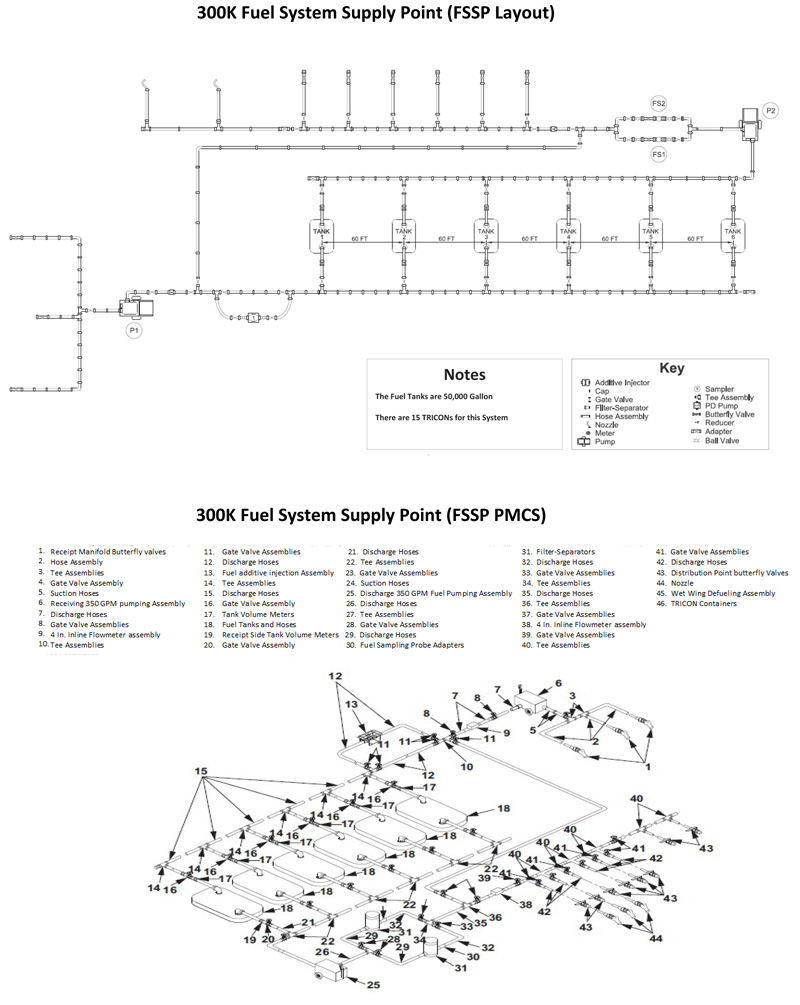

300K FSSP
Uses qty (6) 50,000 gal collapsible tanks & 350 gpm pumps (shipped/stored in 15 TRICONs)
Transportability/Portability: The 300K FSSP is designed for quick deployment in the operational arena and can be deployed by 8 soldiers and a fork lift.

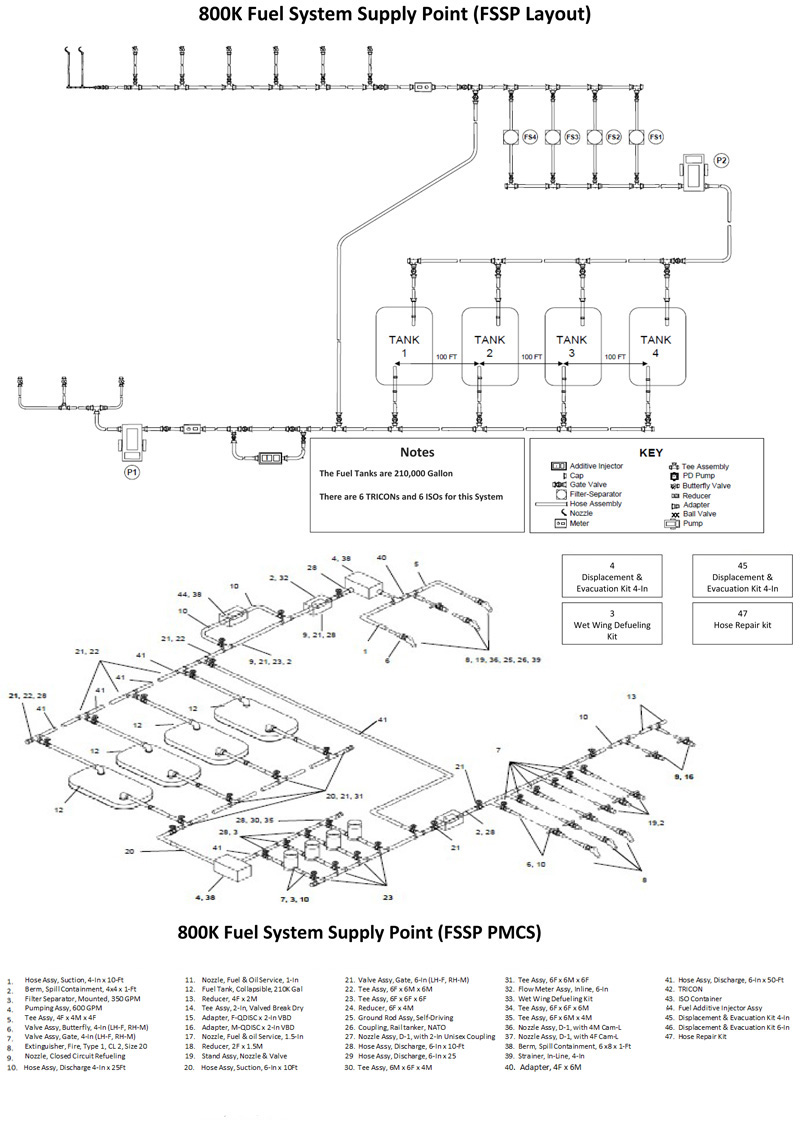

800K FSSP
Uses qty (4) 210,000 gal collapsible tanks & 600 gpm pumps (shipped/stored in (6) ISO containers and (6) TRICONs)
Transportability/Portability: The 800K FSSP is designed for quick deployment in the operational arena and can be deployed by 16 soldiers and a fork lift.

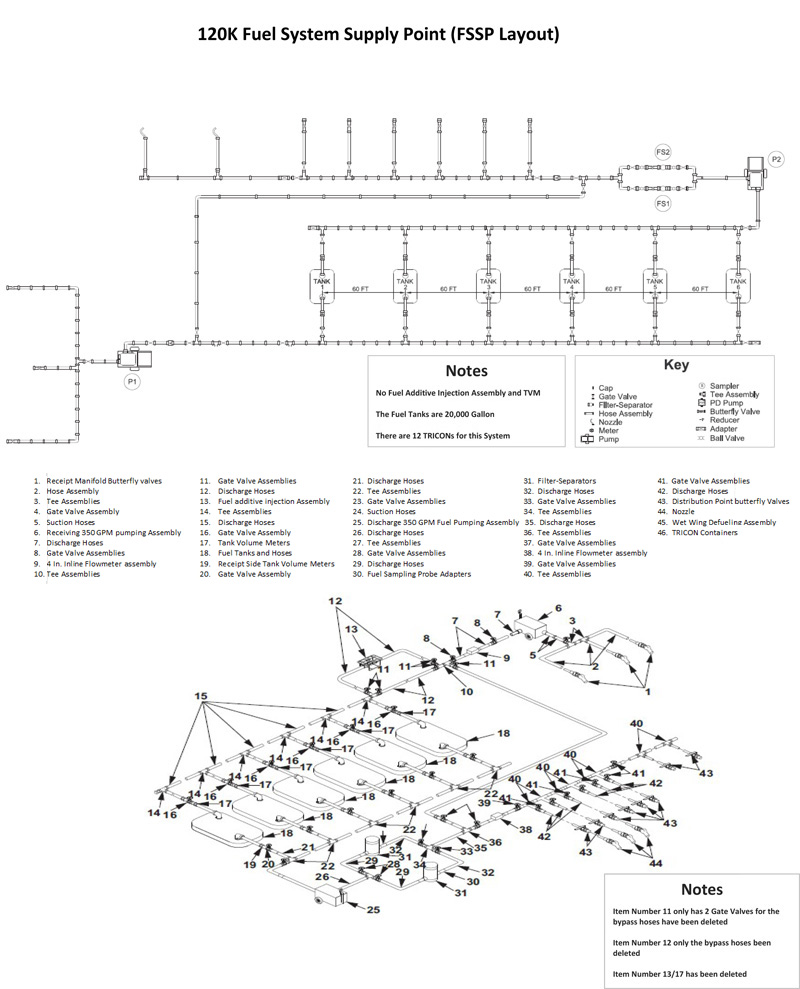

120K FSSP
Uses qty (6) 20,000 gal collapsible tanks & 350 gpm pumps (shipped/stored in 12 TRICONs)
Transportability/Portability: The 120K FSSP is designed for quick deployment in the operational arena and can be deployed by 8 soldiers and a fork lift.
